Can Wiper Seals be used in mining equipment?
Mining equipment operates in some of the most challenging environments on Earth. These machines are subjected to extreme conditions, including high pressures, abrasive particles, and heavy loads. In such harsh settings, the reliability and performance of every component are crucial. One often - overlooked yet essential component is the wiper seal. As a wiper seal supplier, I am frequently asked whether wiper seals can be effectively used in mining equipment. In this blog, I will explore this question in detail.
Understanding Wiper Seals
Wiper seals, also known as dust seals, are designed to protect hydraulic cylinders and other moving parts from contaminants such as dust, dirt, water, and abrasive particles. They are typically installed on the rod end of a hydraulic cylinder and act as a barrier, preventing foreign matter from entering the cylinder and causing damage to the internal components.

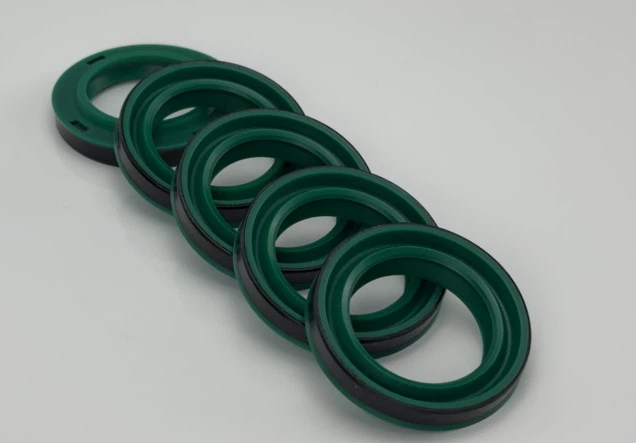

There are several types of wiper seals available in the market. For example, PTFE Dust Rings are made from Polytetrafluoroethylene (PTFE), a material known for its low friction coefficient and excellent chemical resistance. These seals are ideal for applications where minimizing friction and wear is critical. On the other hand, Double Lipped Metal Cased Wipers offer enhanced protection due to their double - lip design and metal casing, which provides additional support and durability. Hydraulic Double Lipped Wipers are specifically designed for hydraulic systems, where they can effectively wipe off contaminants while maintaining a good seal against fluid leakage.
The Demands of Mining Equipment
Mining equipment, such as excavators, loaders, and drilling rigs, faces unique challenges. The mining environment is filled with abrasive dust, rocks, and other debris. These particles can easily enter the hydraulic cylinders of the equipment if not properly sealed. Once inside, they can cause significant damage to the cylinder walls, piston rods, and other internal components. This can lead to increased wear and tear, reduced efficiency, and ultimately, costly breakdowns.
In addition to abrasion, mining equipment also operates under high pressures and heavy loads. Hydraulic systems in mining machinery often work at pressures ranging from several hundred to several thousand pounds per square inch (psi). The wiper seals must be able to withstand these high pressures without losing their sealing effectiveness. Moreover, the equipment is often exposed to extreme temperatures, both hot and cold, which can affect the performance and durability of the seals.
Why Wiper Seals are Suitable for Mining Equipment
Despite the harsh conditions in the mining industry, wiper seals are well - suited for use in mining equipment for several reasons.
Contaminant Protection
The primary function of wiper seals is to keep contaminants out of the hydraulic cylinders. In a mining environment, where dust and debris are abundant, this is of utmost importance. A good wiper seal can effectively wipe off the dust and dirt that accumulate on the piston rod as it moves in and out of the cylinder. This prevents the particles from entering the cylinder and causing damage to the internal components. For example, the double - lip design of some wiper seals provides an extra layer of protection, ensuring that even the smallest particles are kept at bay.
Durability
Wiper seals are designed to be durable and long - lasting. They are made from high - quality materials that can withstand the abrasion, high pressures, and extreme temperatures commonly found in mining operations. For instance, PTFE dust rings have excellent wear resistance, which means they can maintain their sealing performance even after extended use in abrasive environments. The metal casing in double - lipped metal cased wipers provides additional strength and support, making them more resistant to damage from impact and heavy loads.
Compatibility with Hydraulic Systems
Mining equipment relies heavily on hydraulic systems for its operation. Wiper seals are specifically designed to be compatible with hydraulic fluids used in these systems. They can maintain a good seal against fluid leakage while effectively wiping off contaminants. This ensures that the hydraulic system operates smoothly and efficiently, reducing the risk of breakdowns and downtime.
Case Studies
To illustrate the effectiveness of wiper seals in mining equipment, let's look at a few case studies.
In a large - scale open - pit mine, an excavator was experiencing frequent hydraulic cylinder failures due to dust and debris entering the cylinders. The maintenance team decided to install high - quality double - lipped metal cased wipers on the excavator's hydraulic cylinders. After the installation, the number of cylinder failures decreased significantly. The wiper seals effectively prevented the dust and dirt from entering the cylinders, reducing wear and tear on the internal components. This not only extended the lifespan of the cylinders but also improved the overall efficiency of the excavator.
Another case involved a drilling rig in an underground mine. The rig was operating in a high - pressure and high - temperature environment, and the original wiper seals were unable to withstand the harsh conditions. The operator replaced the seals with PTFE dust rings. The PTFE material's low friction coefficient and excellent chemical resistance allowed the seals to perform well under the extreme conditions. The drilling rig's hydraulic system became more reliable, and the downtime for maintenance and repairs was reduced.
Choosing the Right Wiper Seals for Mining Equipment
When selecting wiper seals for mining equipment, several factors need to be considered.
Material
The material of the wiper seal is crucial. It should be able to withstand the abrasion, high pressures, and extreme temperatures in the mining environment. As mentioned earlier, PTFE, rubber, and metal - reinforced materials are commonly used for wiper seals in mining applications.
Seal Design
The design of the wiper seal also plays an important role. Double - lipped seals generally provide better protection than single - lipped seals. The shape and size of the seal should be carefully selected to ensure a proper fit on the piston rod and the cylinder housing.
Compatibility
The wiper seal must be compatible with the hydraulic fluid used in the mining equipment. Different hydraulic fluids have different chemical properties, and the seal material should be resistant to these fluids to prevent swelling, hardening, or other forms of degradation.
Conclusion
In conclusion, wiper seals can and should be used in mining equipment. They offer essential protection against contaminants, are durable enough to withstand the harsh conditions in the mining industry, and are compatible with the hydraulic systems used in mining machinery. By choosing the right wiper seals, mining companies can improve the reliability and efficiency of their equipment, reduce maintenance costs, and minimize downtime.
If you are in the mining industry and are looking for high - quality wiper seals for your equipment, we are here to help. As a leading wiper seal supplier, we offer a wide range of wiper seals, including PTFE Dust Rings, Double Lipped Metal Cased Wipers, and Hydraulic Double Lipped Wipers. Our seals are designed to meet the highest standards of quality and performance. Contact us today to discuss your specific requirements and let us help you find the perfect wiper seals for your mining equipment.
