PFB Filament-wound Bearings

PFB Filament-wound Bearings

Max.Static Load: 483 MPa
Max.Dynamic Load: 207 MPa
Friction coefficient:0.05-0.30
Maintenance-free
Working temperature -163/+163℃
Products Description



Filament-wound bearings are considered one of the strongest composite bearings, they are made of continuous glass fiber filaments combined with a specially made epoxy resin base, which has extremely high strenth and naturally forms a seamless, non-overlapping concentric structure.



Properties of filament wound bearings:

Maintenance free

Having a low friction coefficient

Resistant to dust and dirt

Have good corrision resistance

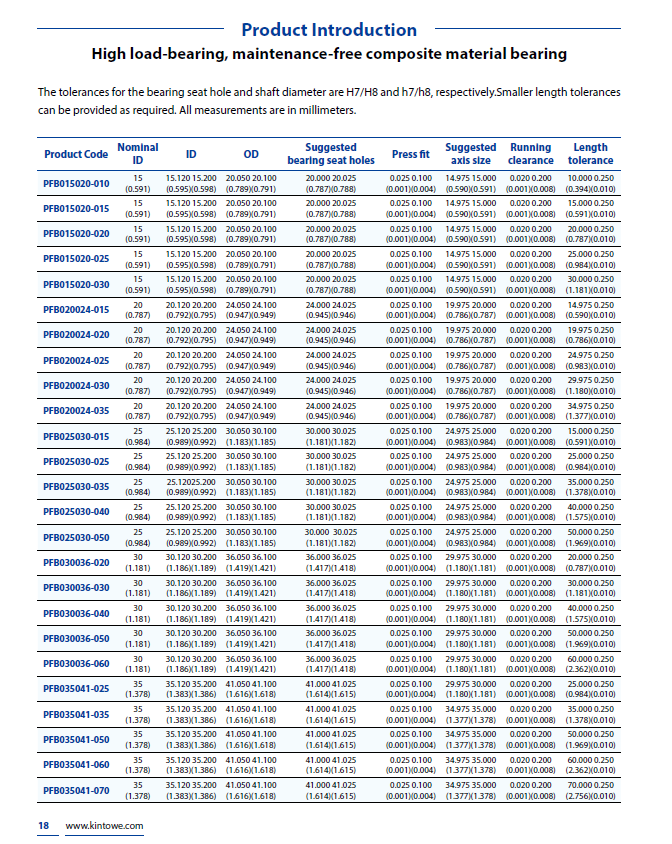

Technical Parameters:

QQ20260114162854QQ20260114162946



Typical Application



Cranes

Hydraulic cylinder bushings

Excavators

Wind turbines

Conveyors



product-1400-300

1

2

3

4

5



Our exhibition



PTC, BAUMA, Hannover Messe etc.

5



By Express (FedEx, UPS, DHL, TNT, EMS, etc. )

--- Advantage: Fast (takes about 7 - 10 days in the delivery), door to door

This is especially useful for urgent shipments that need to reach their destination quickly. Though express delivery is a little expensive, it is worth the cost if time is a crucial factor.

product-1419-248



By Air Transportation

--- Advantage: Fast (takes about 8 - 12 days), a little cheaper than Express.

Though it takes a little longer than express delivery, at around 8-12 days, it is still relatively quick. Additionally, air transportation is a little cheaper than express delivery. The only downside is that the receiver has to collect the goods from the airport.

9



By Sea (Ocean ) Transportation

--- Advantage: Much cheaper than Express or Air transportation.

Sea transportation is an excellent option for individuals and businesses that need to transport goods across long distances. With its cost savings and global coverage, it's an attractive alternative to other transportation methods.

10



FAQ:



Q: What kinds of products you can produce?

A: Like guide rings, wear rings, bushings, thrust washers, spherical bearings, marine bearings, filament-wound bearings, guide tapes, pistons seals, rod seals, wipers etc.

Q: Visting factory is allowed or not?

A: Yes, we welcome customers visiting our factory.

Q: Have your products been exported?

A: Yes, like Germany, Holland, Denmark, England, Russia, USA, Singapore, Vietnam, Thailand, Norway, Canada etc.
