Products Description
Material: Polyester resin + synthetic fiber + lubricants
Advantages:
☆ Long life
☆ Quick installation
☆ High compression and impact strength
☆ High edge and shock load capabilities
☆ Wide scope of application
Kintowe rudder pintle bushes are specifically designed to thrive in the demanding conditions of sea travel. These high-performance bushes are constructed from a special composite material that incorporates lubricating additives, ensuring that they deliver exceptionally smooth and reliable operation.
Rudder pintle bushes with its exceptional mechanical strength, making them highly resistant to wear and tear, even in the roughest of seas. In addition, their low coefficient of friction means that they reduce the wear on the surrounding components, making them an ideal choice for those who want to ensure the longevity of their vessel's rudder system.
Furthermore, Kintowe rudder pintle bushes are built to withstand the harsh marine environment. Their synthetic fiber reinforced thermoset resin ensures that they are immune to the corrosive effects of saltwater, guaranteeing that they will continue to perform at their peak for years to come.
Kntowe rudder pintle bushes offer a reliable and effective solution for those who need dependable operation and durability from their vessels. So, whether you are a professional sailor, a boat enthusiast, or anyone in between, Kintowe rudder pintle bushes are an excellent choice for your maritime needs.

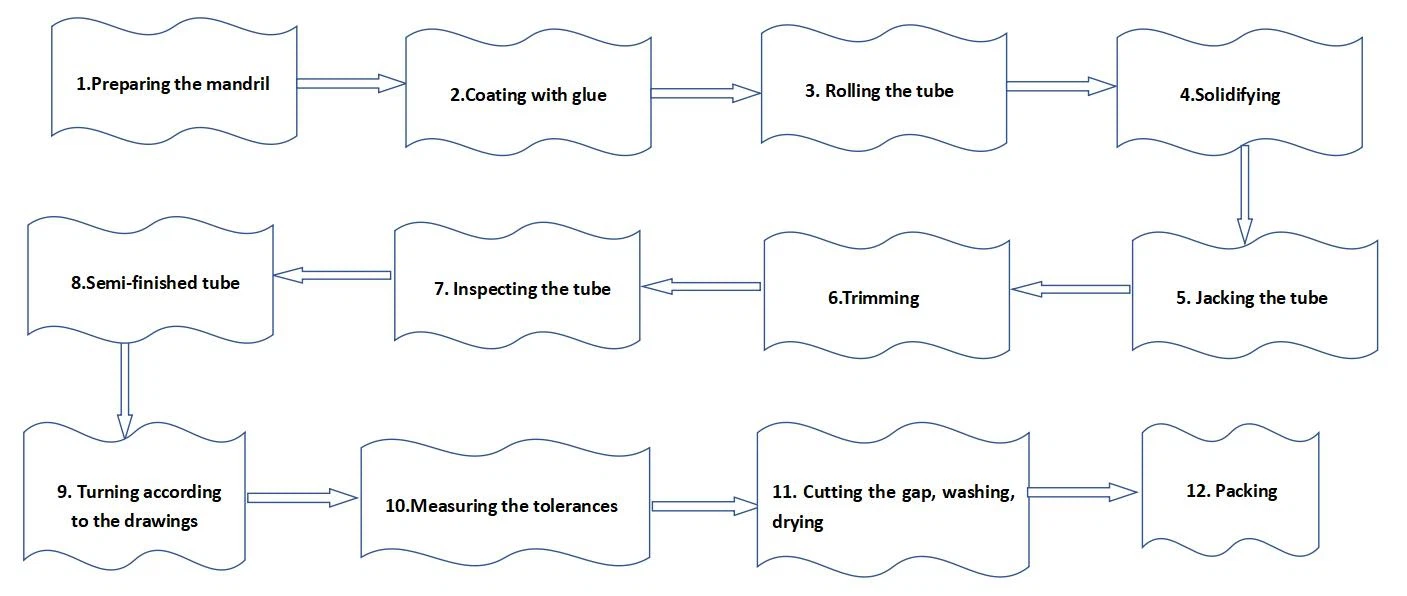

Production process:
Technical Parameters:
|
Mechanical Properties |
Unit |
PFC-22 |
|
Compressive strength |
N/mm2 |
330 |
|
Tensile strength |
N/mm2 |
60 |
|
Flexural strength |
N/mm2 |
65 |
|
Shear strength |
N/mm2 |
80 |
|
Impact strength |
KJ/m2 |
100 |
|
Hardness-Rockwell M |
|
80 |
|
Density |
G/cm3 |
1.2-1.4 |
|
Swell in water, % of wall thickness |
% |
＜0.2 |
|
Thermal expansion coefficient 20-100℃ Normal to laminate Parallel to laminate |
℃x105 ℃x105 |
9-10 5-6 |
|
Coefficient of friction |
|
0.07-0.13 |
Typical Application
☆ Water lubricated propeller shaft bearings
☆ Water grease lubricated stern tube bearings
☆ Wate lubricated Rudder pintle bushes
Our exhibition
PTC, BAUMA, Hannover Messe etc.
Packing & Delivery
By Express (FedEx, UPS, DHL, TNT, EMS, etc. )
--- Advantage: Fast (takes about 7 - 10 days in the delivery), door to door
This is especially useful for urgent shipments that need to reach their destination quickly. Though express delivery is a little expensive, it is worth the cost if time is a crucial factor.
By Air Transportation
--- Advantage: Fast (takes about 8 - 12 days), a little cheaper than Express.
Though it takes a little longer than express delivery, at around 8-12 days, it is still relatively quick. Additionally, air transportation is a little cheaper than express delivery. The only downside is that the receiver has to collect the goods from the airport.
By Sea (Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Sea transportation is an excellent option for individuals and businesses that need to transport goods across long distances. With its cost savings and global coverage, it's an attractive alternative to other transportation methods.
FAQ:
Q: Are you a manufacturer?
Q: Can you produce the bearings with customized sizes?
Q: Do you have the certificate for the marine bearings?
Hot Tags: rudder pintle bushes, China rudder pintle bushes manufacturers, suppliers, factory, Rod Step Seals, Rudder Pintle Bushes, Spring Energized Seals, Composite Wear Rings, Composite Guide Rings, Hydraulic Wear Rings
