Products Description

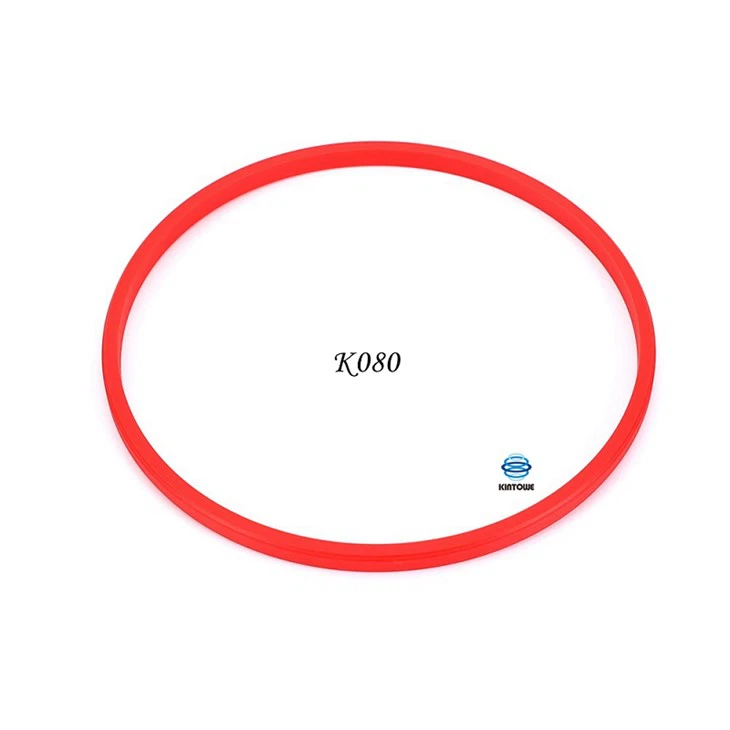

K080 hydraulic swivel seals
Advantages:
● Suitable for use in hydraulic swivel joints
● Easy installation
● Making the hydraulic system runs smoothly and safely
Kintowe K080 hydraulic swivel seals are a high-quality product designed to deliver reliable performance and easy installation. These seals are made from KINTOWE ®01, a high-performance polyurethane material that provides exceptional sealing characteristics.
K080 hydraulic swivel seals are suitable for use in hydraulic swivel joints. These joints are an essential component in hydraulic systems, and they must be reliable and long-lasting to ensure the smooth operation of the system.
With Kintowe K080 hydraulic swivel seals, you can be confident that you are using a product that has been designed with the specific needs of hydraulic swivel joints in mind. These seals are engineered to provide optimal performance in this demanding application, ensuring that your hydraulic system runs smoothly and safely.
Additionally, the ease of installation offered by Kintowe K080 hydraulic swivel seals ensures that maintenance tasks can be completed quickly and efficiently. This reduces downtime and improves the overall productivity of your equipment.
K080 hydraulic swivel seals are a high-quality product that is specifically designed to meet the needs of hydraulic swivel joints. They offer excellent sealing characteristics and easy installation, making them an ideal choice for any hydraulic system.
Production process:
Technical details
| Operating conditions | Metric | Inch |
| Maximum speed | 0.1 m/sec | 0.3 ft/sec |
| Temperature range | -30℃+80℃ | -22°F +76°F |
| Surface roughness | μmRa | μmRt | μinCLA | μinRMS |
| Dynamic sealing face ød1 | 0.1＜＞0.4 | 4 max | 4＜＞16 | 5＜＞18 |
| Static sealing face øD1 | 1.6 max | 10 max | 63 max | 70 max |
| Static housing faces L1 | 3.2 max | 16 max | 125 max | 140 max |
| Chamfers & Radii | |
| Groove Section ≤S mm | 5.2 |
| Min Chamfer C mm | 2.4 |
| Max Fillet Rad r1 mm | 0.4 |
|
Tolerances |
ød1 |
øD1 |
ØD2 |
L1 mm |
|
mm |
f8 |
H10 |
H8 |
+0.3 -0 |
|
Фd1 |
ФD1 |
L1 |
PART No. |
|
60 |
70 |
5 |
K0800600 |
|
70 |
80 |
5 |
K0800700 |
|
75 |
85 |
5 |
K0800750 |
|
80 |
90 |
5.0 |
K0800800 |
|
90 |
100 |
5.0 |
K0800900 |
|
95 |
105 |
5.0 |
K0800950 |
|
100 |
110 |
5.0 |
K0801000 |
|
105 |
115 |
5.0 |
K0801050 |
|
110 |
120 |
5.0 |
K0801100 |
|
115 |
125 |
5.0 |
K0801150 |
|
120 |
130 |
5.0 |
K0801200 |
|
125 |
135 |
5.0 |
K0801250 |
|
130 |
140 |
5.0 |
K0801300 |
