Products Description

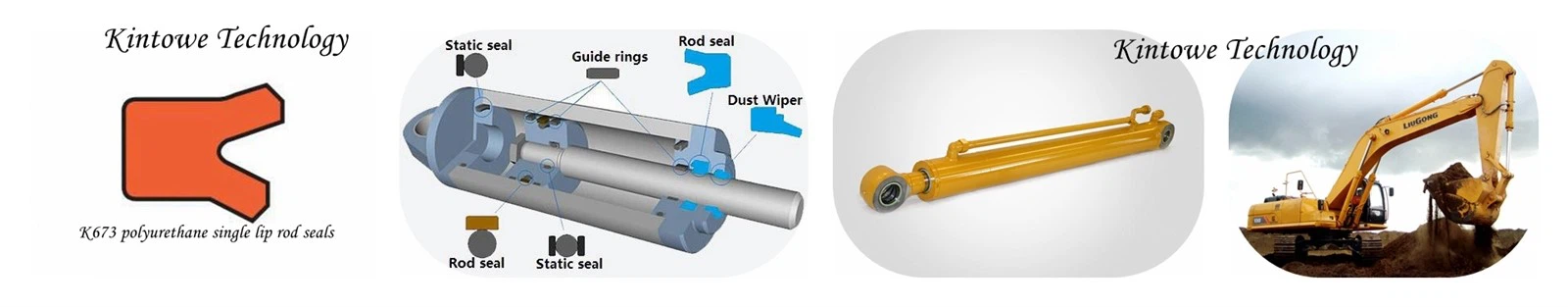

K673 polyurethane single lip rod seals
Advantages:
☆ Simple installation
☆ No leakage if used with K864 or K839 wipers
K673 is an outstanding solution for medium and heavy-duty applications where dry rod sealing is of paramount importance. This asymmetric seal offers superior performance and reliability, ensuring that your equipment remains in top condition for longer periods.
The single lip design of the seal is a highly efficient solution for various applications. It can effectively prevent contaminants from penetrating into the system and ensure smooth operation. Although a double lip wiper is usually preferred in some situations, the single lip design can still provide excellent performance and reliability.
The single lip rod seal's asymmetric design allows for easy installation and smooth operation, while its robust construction ensures longevity and durability even in challenging environments. K673 is an excellent choice looking a reliable, high-performance dry rod seal for medium and heavy-duty applications. Its superior sealing capabilities, robust construction, and easy installation make it a top choice for engineers and equipment maintenance professionals.

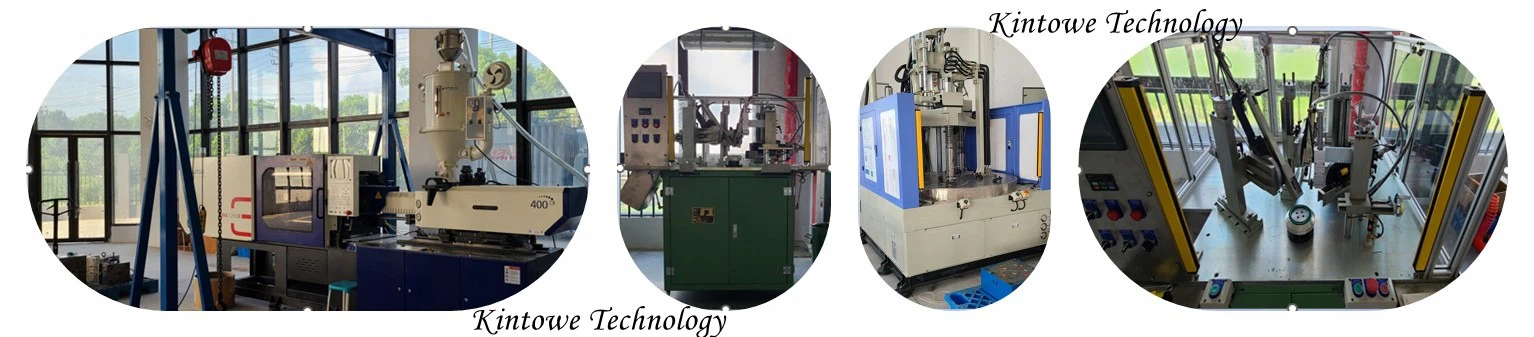

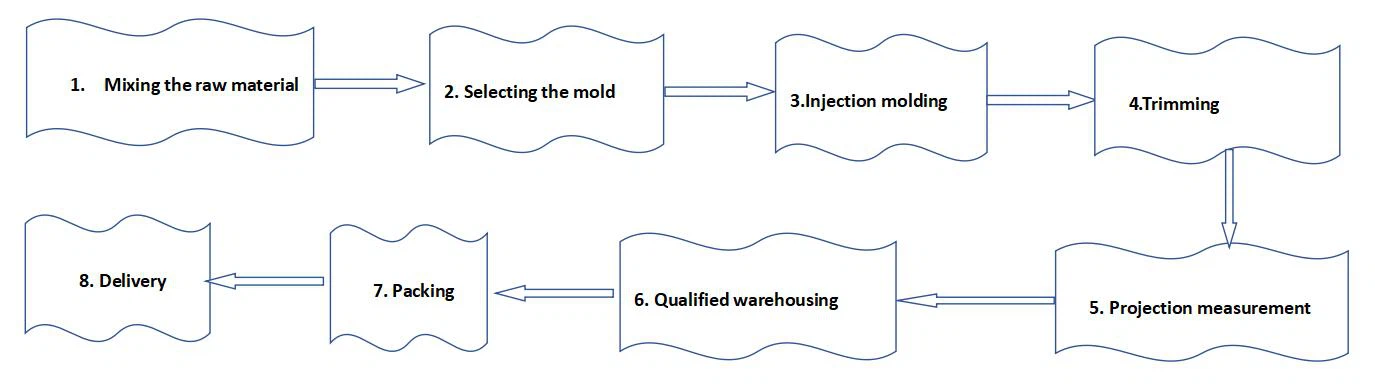

Production process:
Injection molding
Technical details
| Operating conditions | Metric | Inch |
| Maximum speed | 1.0m/sec | 3.0 ft/sec |
| Temperature range | 45℃+110℃ | -50°F +230°F |
| Maximum pressure | 400bar* | 6000 p.s.i.* |
| Maximum extrusion gap | Figures show the maximum permissible gap all on one side using minimum rod ø and maximum clearance ø Refer to housing design section. | ||
| Pressure bar | 160 | 250 | 400 |
| Maximum Gap mm | 0.6 | 0.5 | 0.4 |
| Pressure p.s.i. | 2400 | 3750 | 6000 |
| Maximum Gap in | 0.024 | 0.020 | 0.016 |
| Surface roughness | μmRa | μmRt | μinCLA | μinRMS |
| Dynamic sealing face ød1 | 0.1＜＞0.4 | 4 max | 4＜＞16 | 5＜＞18 |
| Static sealing face L1 | 1.6 max | 10 max | 63 max | 70 max |
| Static housing faces ØD1 L1 | 3.2 max | 16 max | 125 max | 140 max |
| Chamfers & Radii | ||||||
| Groove section ≤ S mm | 4.0 | 5.0 | 7.5 | 10 | 12.5 | 15 |
| Min chamfer C mm | 3.0 | 3.50 | 5.0 | 6.5 | 7.0 | 8.0 |
| Max fillet Rad r1mm | 0.2 | 0.4 | 0.8 | 0.8 | 1.2 | 1.6 |
| Max fillet Rad r2mm | 0.4 | 0.8 | 1.2 | 1.2 | 1.6 | 2.4 |
| Groove section ≤S in | 0.125 | 0.187 | 0.250 | 0.312 | 0.375 | 0.500 |
| Groove chamfer C in | 0.093 | 0.093 | 0.125 | 0.156 | 0.187 | 0.217 |
| Max Fillet Rad r1 in | 0.008 | 0.008 | 0.016 | 0.032 | 0.032 | 0.032 |
| Max Fillet Rad r2 in | 0.016 | 0.016 | 0.032 | 0.047 | 0.047 | 0.047 |
| Tolerances | ød1 | øD1 | L1 mm | L1 in |
|
f9 |
Js11 |
+0.25-0 |
+0.010-0 |
|
Фd1 |
ФD1 |
SL |
L1 |
PART No. |
Фd1 |
ФD1 |
SL |
L1 |
PART No. |
|
30 |
43 |
10.0 |
11.0 |
6730300 |
70 |
83 |
10.0 |
11.0 |
6730700 |
|
30 |
45 |
10.0 |
11.0 |
6730301 |
70 |
85 |
9.0 |
10.0 |
6730701 |
|
32 |
42 |
6.0 |
7.0 |
6730320 |
75 |
88 |
10.0 |
11.0 |
6730750 |
|
35 |
45 |
6.0 |
7.0 |
6730350 |
75 |
90 |
9.0 |
10.0 |
6730751 |
|
35 |
50 |
10.0 |
11.0 |
6730351 |
75 |
90 |
10.0 |
11.0 |
6730752 |
|
40 |
50 |
6.0 |
7.0 |
6730400 |
80 |
93 |
10.0 |
11.0 |
6730800 |
|
40 |
50 |
9.0 |
10.0 |
6730401 |
80 |
95 |
9.0 |
10.0 |
6730801 |
|
40 |
55 |
6.0 |
7.0 |
6730402 |
80 |
95 |
10.0 |
11.0 |
6730802 |
|
40 |
55 |
10.0 |
11.0 |
6730403 |
80 |
100 |
12.0 |
13.0 |
6730803 |
|
50 |
60 |
8.0 |
9.0 |
6730500 |
85 |
100 |
9.0 |
10.0 |
6730850 |
|
50 |
63 |
9.0 |
10.0 |
6730501 |
85 |
100 |
10.0 |
11.0 |
6730851 |
|
50 |
65 |
8.0 |
9.0 |
6730502 |
85 |
105 |
12.0 |
13.0 |
6730852 |
|
50 |
65 |
10.0 |
11.0 |
6730503 |
90 |
105 |
9.0 |
10.0 |
6730900 |
|
55 |
68 |
10.0 |
11.0 |
6730550 |
90 |
105 |
10.0 |
11.0 |
6730901 |
|
55 |
70 |
9.0 |
10.0 |
6730551 |
90 |
110 |
12.0 |
13.0 |
6730902 |
|
60 |
73 |
10.0 |
11.0 |
6730600 |
95 |
110 |
9.0 |
10.0 |
6730950 |
|
60 |
75 |
9.0 |
10.0 |
6730601 |
95 |
110 |
10.0 |
11.0 |
6730951 |
|
60 |
75 |
10.0 |
11.0 |
6730602 |
95 |
115 |
12.0 |
13.0 |
6730952 |
|
60 |
78 |
10.0 |
11.0 |
6730603 |
100 |
115 |
9.0 |
10.0 |
6731000 |
|
65 |
80 |
9.0 |
10.0 |
6730650 |
100 |
115 |
10.0 |
11.0 |
6731001 |
|
65 |
80 |
10.0 |
11.0 |
6730651 |
100 |
120 |
12.0 |
13.0 |
6731002 |
