Products Description
K780 double acting piston seals
Advantages:
☆ Cutting design for back-up rings & wear rings, easy to install
☆ Strong extrusion resistance, long using life
☆ The processing accuracy of the cylinder is not high

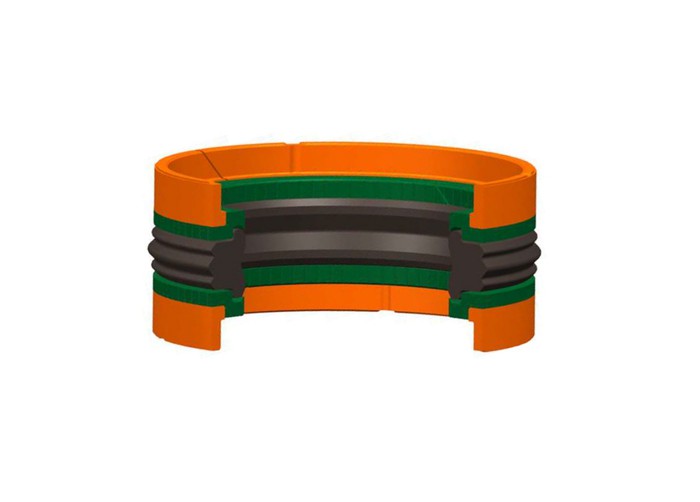

Kintowe K780 double acting piston seal is a robust assembly designed specifically for single pistons, which uses a rubber sealing element that has proved itself in service to be extremely wear resistant and capable of working most effectively in a wide range of medium duty applications. This piston seal is also suitable for double pistons.
The assembly comprises a rubber sealing element, two split support rings and two split L-shaped guide rings, one of each located either side of the seal.
The nitrile rubber sealing element is designed with multi-lips for efficient dynamic sealing with minimal low friction and when pressurized, be protected from extrusion damage by the extending lips of the support ring. The guide ring is manufactured from a tough, flexible polymer and scarf cut for assembly.
Both the L-shaped guide rings are grooved to ensure that the fluid pressure properly energized the sealing element and to prevent the possibility of any pressure trapping within the seal assembly.
The K780 double acting piston seals are the reliable and durable solution for single and double pistons. It is capable of working effectively in a wide range of applications, making it a valuable asset to many different industries. Whether you are working in manufacturing, construction, or any other field that requires reliable piston seals, the K780 is an excellent choice.

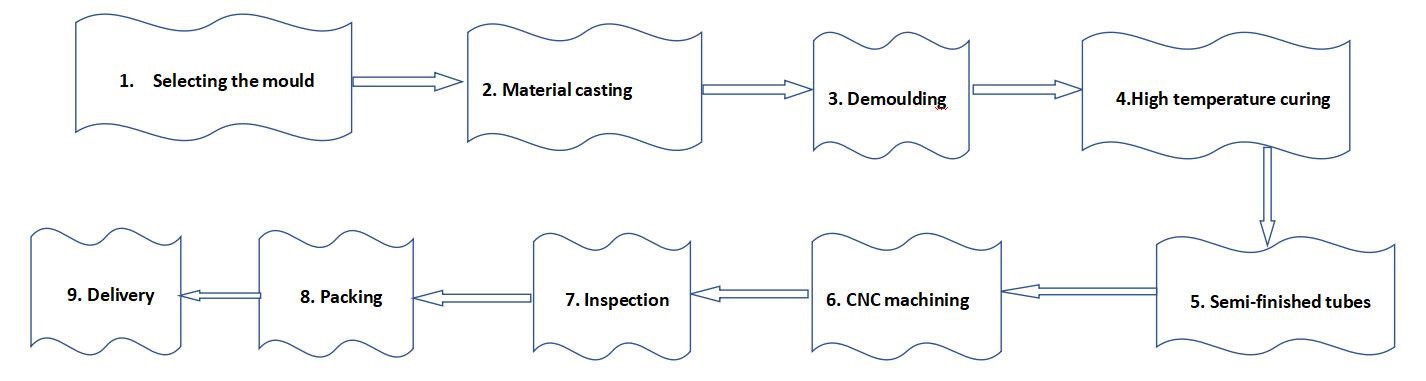

Production process:
Technical details
| Operating conditions | Metric | Inch |
| Maximum speed |
0.5m/sec |
1.5 ft/sec |
| Temperature range |
-30℃+100℃ |
-22°F +212°F |
| Maximum pressure |
400bar |
6000 p.s.i. |
|

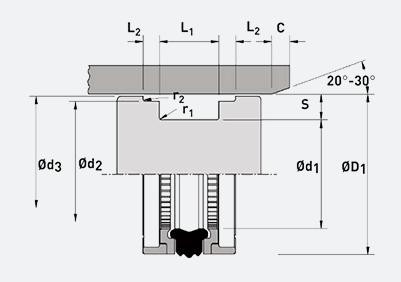

Chamfers & Radii |
||||||
|
Groove section ≤ S mm |
5.0 |
7.5 |
8.0 |
10.0 |
12.5 |
15.0 |
|
Min chamfer C mm |
2.4 |
4.0 |
5.0 |
5.0 |
6.5 |
7.5 |
|
Max fillet Rad r1mm |
0.4 | 0.4 | 0.4 | 0.4 | 0.8 | 0.8 |
|
Max fillet Rad r2mm |
0.4 | 0.4 | 0.4 | 0.4 | 0.8 | 0.8 |
|
Tolerances |
øD1 |
ød1 |
ød2 |
ød3 |
L1 |
L2 in |
|
mm |
H9 |
h9 |
h9 |
h11 |
+0.2 -0 |
+0.1 -0 |
|
ФD1 |
Фd1 |
Фd2 |
Фd3 |
L1 |
L2 |
PART No. |
|
20 |
11 |
17.00 |
19.0 |
13.5 |
2.10 |
K7800200 |
|
25 |
15 |
21.00 |
24.0 |
12.0 |
4.00 |
K7800250 |
|
25 |
16 |
22.00 |
24.0 |
13.5 |
2.10 |
K7800251 |
|
30 |
17 |
27.00 |
29.0 |
15.4 |
6.35 |
K7800300 |
|
30 |
21 |
27.00 |
29.0 |
15.4 |
6.35 |
K7800301 |
|
32 |
22 |
28.00 |
31.0 |
15.5 |
2.60 |
K7800320 |
|
32 |
22 |
28.50 |
30.5 |
16.4 |
6.35 |
K7800321 |
|
35 |
25 |
31.00 |
34.0 |
15.5 |
2.60 |
K7800350 |
|
35 |
25 |
31.40 |
33.5 |
16.4 |
6.35 |
K7800351 |
|
40 |
24 |
35.40 |
38.5 |
18.4 |
6.35 |
K7800400 |
|
40 |
30 |
37.00 |
39.0 |
12.5 |
4.00 |
K7800401 |
|
40 |
30 |
35.40 |
38.5 |
16.4 |
6.35 |
K7800402 |
|
45 |
29 |
40.40 |
43.5 |
18.4 |
6.35 |
K7800450 |
|
45 |
31 |
41.00 |
44.0 |
15.5 |
2.60 |
K7800451 |
|
45 |
35 |
40.40 |
43.5 |
16.4 |
6.35 |
K7800452 |
|
50 |
34 |
45.40 |
48.5 |
18.4 |
6.35 |
K7800500 |
|
50 |
34 |
46.00 |
49.0 |
20.5 |
3.10 |
K7800501 |
|
50 |
38 |
46.00 |
49.4 |
20.5 |
4.20 |
K7800502 |
|
50 |
40 |
47.00 |
49.0 |
12.5 |
4.00 |
K7800503 |
|
55 |
39 |
50.36 |
53.5 |
18.4 |
6.35 |
K7800550 |
|
55 |
39 |
51.00 |
54.0 |
20.5 |
3.10 |
K7800551 |
|
60 |
44 |
55.40 |
58.5 |
18.4 |
6.35 |
K7800600 |
|
60 |
44 |
56.00 |
59.0 |
20.5 |
3.10 |
K7800601 |
|
60 |
48 |
56.00 |
59.4 |
20.5 |
4.20 |
K7800602 |
|
63 |
47 |
58.40 |
61.5 |
18.4 |
6.35 |
K7800630 |
|
ФD1 |
Фd1 |
Фd2 |
Фd3 |
L1 |
L2 |
PART No. |
|
63 |
47 |
58.40 |
61.5 |
19.4 |
6.35 |
K7800631 |
|
63 |
51 |
59.00 |
62.4 |
20.5 |
4.20 |
K7800632 |
|
65 |
49 |
61.00 |
64.0 |
20.5 |
3.10 |
K7800650 |
|
65 |
50 |
60.40 |
63.5 |
18.4 |
6.35 |
K7800651 |
|
70 |
50 |
64.20 |
68.3 |
22.4 |
6.35 |
K7800700 |
|
70 |
54 |
66.00 |
69.0 |
20.5 |
3.10 |
K7800701 |
|
70 |
58 |
66.00 |
69.4 |
20.5 |
3.10 |
K7800702 |
|
75 |
55 |
69.20 |
73.3 |
22.4 |
6.35 |
K7800750 |
|
75 |
59 |
71.00 |
74.0 |
20.5 |
3.10 |
K7800751 |
|
80 |
60 |
74.15 |
78.3 |
22.4 |
6.35 |
K7800800 |
|
80 |
62 |
76.00 |
79.0 |
22.5 |
3.60 |
K7800801 |
|
80 |
66 |
76.00 |
79.4 |
22.5 |
5.20 |
K7800802 |
|
85 |
65 |
79.15 |
83.3 |
22.4 |
6.35 |
K7800850 |
|
90 |
70 |
84.15 |
83.3 |
22.4 |
6.35 |
K7800900 |
|
90 |
76 |
86.00 |
89.4 |
22.5 |
5.20 |
K7800901 |
|
95 |
75 |
89.15 |
93.3 |
22.4 |
6.35 |
K7800950 |
|
100 |
75 |
93.15 |
98.0 |
22.4 |
6.35 |
K7801000 |
|
100 |
80 |
95.00 |
98.0 |
25.0 |
6.30 |
K7801001 |
|
100 |
82 |
96.00 |
99.0 |
22.5 |
3.60 |
K7801002 |
|
100 |
85 |
96.00 |
98.5 |
20.0 |
5.00 |
K7801003 |
|
100 |
86 |
96.00 |
99.4 |
22.5 |
5.20 |
K7801004 |
|
105 |
80 |
98.10 |
103.0 |
22.4 |
6.35 |
K7801050 |
|
110 |
85 |
103.10 |
108.0 |
22.4 |
6.35 |
K7801100 |
|
115 |
90 |
108.10 |
113.0 |
22.4 |
6.35 |
K7801150 |
|
120 |
95 |
113.10 |
118.0 |
22.4 |
6.35 |
K7801200 |
|
ФD1 |
Фd1 |
Фd2 |
Фd3 |
L1 |
L2 |
PART No. |
|
125 |
100 |
118.10 |
123.0 |
25.4 |
6.35 |
K7801250 |
|
125 |
105 |
120.00 |
123.0 |
25.0 |
6.30 |
K7801251 |
|
130 |
105 |
123.10 |
128.0 |
25.4 |
9.50 |
K7801300 |
|
135 |
110 |
127.60 |
133.0 |
25.4 |
9.50 |
K7801350 |
|
140 |
115 |
133.00 |
138.0 |
25.4 |
6.35 |
K7801400 |
|
140 |
115 |
132.60 |
138.0 |
25.4 |
9.50 |
K7801401 |
|
145 |
120 |
137.60 |
143.0 |
25.4 |
9.50 |
K7801450 |
|
150 |
125 |
142.60 |
148.0 |
25.4 |
9.50 |
K7801500 |
|
155 |
130 |
147.60 |
153.0 |
25.4 |
9.50 |
K7801550 |
|
160 |
130 |
153.00 |
158.0 |
25.4 |
9.50 |
K7801600 |
|
160 |
135 |
152.60 |
158.0 |
25.4 |
9.50 |
K7801601 |
|
165 |
140 |
157.60 |
163.0 |
25.4 |
9.50 |
K7801650 |
|
170 |
145 |
161.70 |
168.0 |
25.4 |
12.70 |
K7801700 |
|
175 |
150 |
166.70 |
173.0 |
25.4 |
12.70 |
K7801750 |
|
180 |
150 |
172.95 |
178.0 |
35.4 |
6.35 |
K7801800 |
|
180 |
155 |
171.70 |
178.0 |
25.4 |
12.70 |
K7801801 |
|
185 |
160 |
176.70 |
183.0 |
25.4 |
12.70 |
K7801850 |
|
190 |
165 |
181.70 |
188.0 |
25.4 |
12.70 |
K7801900 |
|
195 |
170 |
186.70 |
193.0 |
25.4 |
12.70 |
K7801950 |
|
200 |
175 |
191.60 |
198.0 |
25.4 |
12.70 |
K7802000 |
|
230 |
205 |
221.60 |
227.0 |
25.4 |
12.70 |
K7802300 |
|
250 |
225 |
241.60 |
247.0 |
25.4 |
12.70 |
K7802500 |
