Products Description
K735 compact double acting piston seals
Advantages:
☆ Low friction
☆ High pressure capability
☆ Long service life
☆ Variety range of material options to suit many working conditions
K735 is a compact double acting piston seal assembly designed for single piston and suitable for low to high pressure, medium to heavy duty applications.
The assembly is composed of a self-lubricating, wear-resistant bronze filled or glass/MoS2 filled PTFE cap ring that offers great durability and longevity. Additionally, it is loaded by an NBR energizer that provides excellent support and energy to the seal, ensuring that it performs optimally under varying conditions.
Moreover, the double acting piston seal comes with thermoplastic split anti-extrusion rings that provide excellent support on both sides and prevent contamination of the energizer and cap ring. This feature ensures that the assembly remains clean and free of any debris, which enhances its durability and longevity.
K735 piston seal is designed to be used in a variety of equipment and is particularly suited to use in earthmoving and other off-highway equipment. This piston seal is able to deliver reliable, leak-free performance that helps ensure optimal system function and long-term operation.

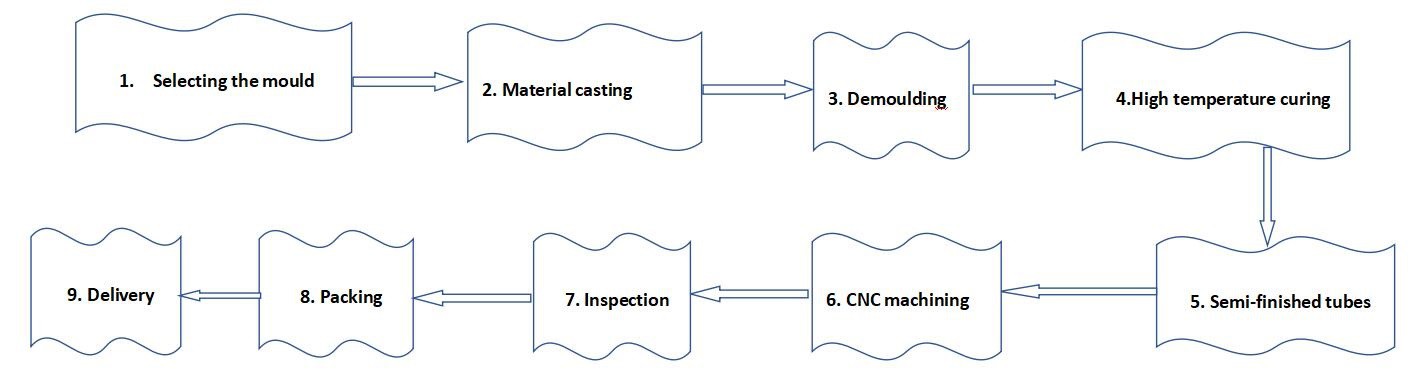

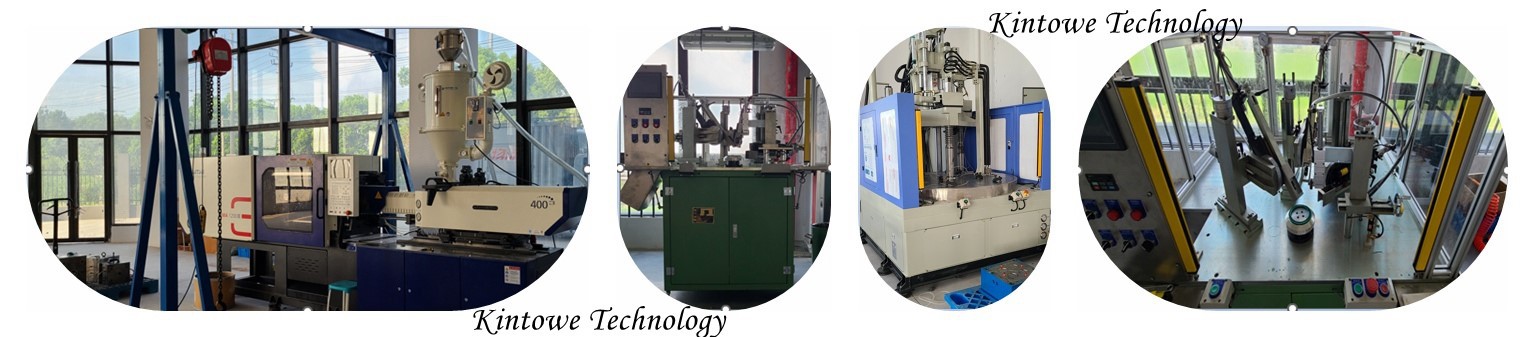

Production process:
Technical details
| Operating conditions | Metric | Inch |
| Maximum speed | 1.5m/sec | 4.5 ft/sec |
| Temperature range | -40℃+120℃ | -40°F +250°F |
| Maximum pressure | 500bar* | 7500 p.s.i.* |
| Maximum extrusion gap | Figures show the maximum permissible gap all on one side using minimum rod ø and maximum clearance ø. | |||
| Pressure bar | 160 | 250 | 400 | 500 |
| Maximum Gap mm | 1.0 | 0.8 | 0.6 | 0.5 |
| Pressure p.s.i. | 2400 | 3750 | 6000 | 7500 |
| Maximum Gap in | 0.040 | 0.030 | 0.024 | 0.020 |
| Surface roughness | μmRa | μmRt | μinCLA | μinRMS |
| Dynamic sealing face øD1 | 0.1＜＞0.4 | 4 max | 4＜＞16 | 5＜＞18 |
| Static sealing face ød1 | 1.6 max | 10 max | 63 max | 70 max |
| Static housing faces L1 | 3.2 max | 16 max | 125 max | 140 max |
| Chamfers & Radii | ||||
| Groove section ≤ S mm | 7.0 | 7.5 | 11.5 | 14.0 |
| Min chamfer C mm | 4.0 | 5.0 | 7.0 | 8.0 |
| Max fillet Rad r1mm | 0.8 | 0.8 | 0.8 | 0.8 |
| Groove section ≤ S in | 0.187 | 0.240 | 0.365 | 0.470 |
| Min Chamfer C in | 0.160 | 0.200 | 0.250 | 0.280 |
| Max Filler Rad r1 in | 0.016 | 0.016 | 0.032 | 0.032 |
| Tolerances | øD1 | ød1 | L1 |
| mm |
H9 |
+0 -0.2 |
+0.2 -0 |
| in |
H9 |
*see below |
+0.01 -0 |
| øD1 in |
≤3.000 |
≤4.500 |
＞4.500 |
| ød1 Tol |
+0 -0.002 |
+0 -0.003 |
+0 -0.004 |
|
ФD1 |
Фd1 |
L1 |
PART No. |
ФD1 |
Фd1 |
L1 |
PART No. |
|
50 |
36 |
9.0 |
7350500 |
165 |
142 |
16.0 |
7351650 |
|
60 |
46 |
9.0 |
7350600 |
170 |
147 |
16.0 |
7351700 |
|
63 |
48 |
11.0 |
7350630 |
175 |
152 |
16.0 |
7351750 |
|
65 |
50 |
11.0 |
7350650 |
180 |
157 |
16.0 |
7351800 |
|
70 |
55 |
11.0 |
7350700 |
185 |
162 |
16.0 |
7351850 |
|
75 |
60 |
11.0 |
7350750 |
190 |
167 |
16.0 |
7351900 |
|
80 |
65 |
11.0 |
7350800 |
200 |
177 |
16.0 |
7352000 |
|
85 |
70 |
11.0 |
7350850 |
210 |
187 |
16.0 |
7352100 |
|
90 |
75 |
11.0 |
7350900 |
215 |
192 |
16.0 |
7352150 |
|
95 |
80 |
11.0 |
7350950 |
220 |
197 |
16.0 |
7352200 |
|
100 |
85 |
12.5 |
7351000 |
225 |
202 |
16.0 |
7352250 |
|
105 |
90 |
12.5 |
7351050 |
230 |
207 |
16.0 |
7352300 |
|
110 |
95 |
12.5 |
7351100 |
240 |
217 |
16.0 |
7352400 |
|
115 |
100 |
12.5 |
7351150 |
250 |
222 |
17.5 |
7352500 |
|
120 |
105 |
12.5 |
7351200 |
260 |
232 |
17.5 |
7352600 |
|
125 |
102 |
16.0 |
7351250 |
270 |
242 |
17.5 |
7352700 |
|
130 |
107 |
16.0 |
7351300 |
280 |
252 |
17.5 |
7352800 |
|
135 |
112 |
16.0 |
7351350 |
290 |
262 |
17.5 |
7352900 |
|
140 |
117 |
16.0 |
7351400 |
300 |
272 |
17.5 |
7353000 |
|
145 |
122 |
16.0 |
7351450 |
320 |
292 |
17.5 |
7353200 |
|
150 |
127 |
16.0 |
7351500 |
330 |
302 |
17.5 |
7353300 |
|
160 |
137 |
16.0 |
7351600 |
350 |
322 |
17.5 |
7353500 |
|
|
|
|
|
400 |
372 |
17.5 |
7354000 |
