Products Description
Material: Epoxy resin + glass fiber + lubricants and other ingredients
Advantages:
● High load capacity
● Excellent wear resistance
● Outstanding chemical resistance
● Low friction coefficient
● Oil forbidden

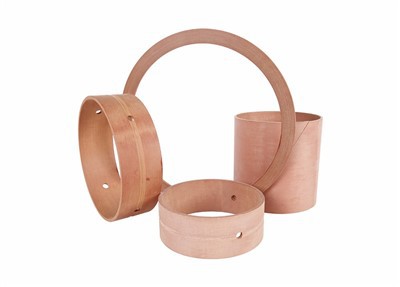

Kintowe filament wound composite bearings are continuously wound with glass fiber and epoxy resin material (bearing layer), filled with PTFE fiber and high strength fiber internal lubricant and high temperature epoxy resin as sliding layer, so as to form a natural concentric high strength bearing without joint and overlap.
Kintowe filament wound composite bearings are made using top quality materials and are designed to offer unparalleled performance. These bearings are continuously wound with glass fiber and epoxy resin material, which makes them incredibly strong and durable. Additionally, they are filled with PTFE fiber and high strength fiber internal lubricant to ensure smooth operation even under extreme conditions.
This high-strength laminate structure is a remarkable feat of engineering that has enabled the creation of smaller and lighter composite bearings. With a bearing wall thickness of only between 1.59mm and 3.18mm, these bearings are significantly more compact and less bulky than traditional bearings.
What's more, the low friction coefficients and high bearing capacity of these composite bearings make them incredibly efficient and reliable. They are capable of withstanding heavy loads and ensuring smooth and friction-free movement, even in the most challenging environments.
Technical Parameters:
Material properties |
Standard |
Unit |
PLB-1 |
Specific Gravity |
ISO1183 |
g/cm3 |
1.95 |
Max. water absorption |
ISO62 |
% |
0.1 |
Max. PV(dry) |
ITS026 |
N/mm2 Xm/s |
1.8 |
Friction Coefficient |
ITS025 |
μ |
0.03~0.12 |
Long-term Operating Temperature |
ITS029 |
℃ |
160 |
Short-term Operating Temperature |
ITS029 |
℃ |
180 |
Minimum Operating Temperature |
ITS029 |
℃ |
-100 |
Max.Speed |
ITS032 |
m/s |
0.2 |
Tensile Strength |
ITS033 |
Mpa |
420 |
Max.Static load |
ITS027 |
Mpa |
240 |
Max.Dynamic load |
ITS028 |
Mpa |
140 |
Shore Hardness |
ISO868 |
D |
96 |
Coefficient of linear thermal expansion |
ISO11359 |
10-5 *K-1 |
13 |
Typical Application
☆ Hydraulic cylinder pivots
☆ Construction machinery arm bushes
☆ Boom lifts, scissor lifts
☆ Cranes, material handing equipment
☆ Port machinery
☆ Package machine
Our exhibition
PTC, BAUMA, Hannover Messe etc.
By Express (FedEx, UPS, DHL, TNT, EMS, etc. )
--- Advantage: Fast (takes about 7 - 10 days in the delivery), door to door
This is especially useful for urgent shipments that need to reach their destination quickly. Though express delivery is a little expensive, it is worth the cost if time is a crucial factor.
By Air Transportation
--- Advantage: Fast (takes about 8 - 12 days), a little cheaper than Express.
Though it takes a little longer than express delivery, at around 8-12 days, it is still relatively quick. Additionally, air transportation is a little cheaper than express delivery. The only downside is that the receiver has to collect the goods from the airport.
By Sea (Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Sea transportation is an excellent option for individuals and businesses that need to transport goods across long distances. With its cost savings and global coverage, it's an attractive alternative to other transportation methods.
