Products Description
Material: 40% bronze filled with PTFE
Advantages:
☆ Chemical resistance
☆ Wide temperature range
☆ Low friction
☆ Protect components from diesel effect

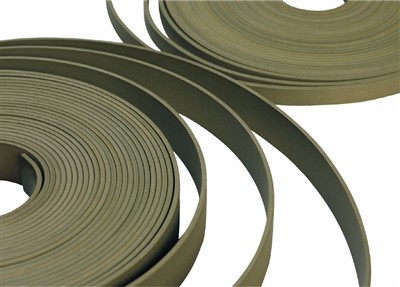

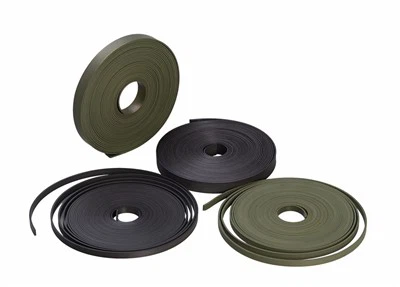

40% bronze filled PTFE guide strips and rings play a crucial role in ensuring the smooth functioning of hydraulic and pneumatic systems. These components provide much-needed protection against radial loads, preventing damage to the cylinder and ensuring the sealing elements function properly.
These strips are made of PTFE filled with 40% Bronze, which provides exceptional strength and durability. They come in two different surface options – standard smooth surface or with pattern surface – depending on the specific needs of the system.
By using high-quality guide strips like those offered by Kintowe, hydraulic and pneumatic systems can operate smoothly and efficiently, ensuring optimal performance and long-lasting durability. So if you want to ensure the reliability of your system, be sure to invest in the best guide strips available!
Production process:
Technical Parameters:
DFG-120 PTFE+graphite
DFG-130 PTFE+40% bronze
|
Material Type |
Density g/cm3 |
Tensile Strength MPa |
Elongation % |
Compressive Strength Mpa |
Bending Strength MPa |
Friction and Wear Properties (dry) |
Heat Distortion Temperature 0.4MPa(℃) |
|
|
Coefficient of friction |
Wear loss (mm) |
|||||||
|
DFG-120(black) |
2.5-2.6 |
17-20 |
＞100 |
30-35 |
20-25 |
0.12-0.16 |
＜2.6 |
60-65 |
|
DFG-130(green) |
3.1-3.5 |
20-25 |
＞125 |
40-50 |
30-40 |
0.20-0.25 |
6.5 |
60-70 |
Typical Application
☆ Construction equipment
☆ Hydraulics & Pneumatics
☆ Hydraulic cylinders
☆ Maintenance
Our service and advantage
☆ Factory direct prices
☆ More than 30 years experiences in hydraulic seals
☆ European standards
☆ We can do OEM services
Our exhibition
PTC, BAUMA, Hannover Messe etc.
Packing & Delivery

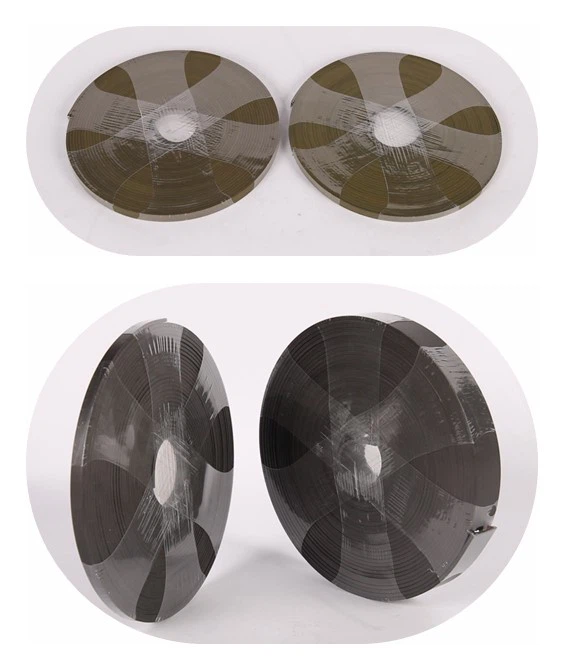

Thermal shrinkage film
By Express (FedEx, UPS, DHL, TNT, EMS, etc. )
--- Advantage: Fast (takes about 7 - 10 days in the delivery), door to door
This is especially useful for urgent shipments that need to reach their destination quickly. Though express delivery is a little expensive, it is worth the cost if time is a crucial factor.
By Air Transportation
--- Advantage: Fast (takes about 8 - 12 days), a little cheaper than Express.
Though it takes a little longer than express delivery, at around 8-12 days, it is still relatively quick. Additionally, air transportation is a little cheaper than express delivery. The only downside is that the receiver has to collect the goods from the airport.
By Sea (Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Sea transportation is an excellent option for individuals and businesses that need to transport goods across long distances. With its cost savings and global coverage, it's an attractive alternative to other transportation methods.
Dimensions:
Speed : 15 m/s
Temperature : -120°c + 120°c
Different sizes are available
|
Width (mm) |
TOL (mm) |
H (MM) |
TOL (mm) |
Length (m) |
|
6.1 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
7.9 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
19.5 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
14.8 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
19.5 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
24.5 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
29.5 |
0/-0.20 |
2.5 |
0/-0.05 |
10.5 |
|
Width (mm) |
TOL (mm) |
H (MM) |
TOL (mm) |
Length (m) |
|
6 |
0/-0.20 |
2 |
0/-0.05 |
13 |
|
8 |
0/-0.20 |
2 |
0/-0.05 |
13 |
|
8 |
0/-0.20 |
3 |
0/-0.05 |
8.7 |
|
10 |
0/-0.20 |
3 |
0/-0.05 |
8.7 |
|
12 |
0/-0.20 |
3 |
0/-0.05 |
8.7 |
|
16 |
0/-0.20 |
3 |
0/-0.05 |
8.7 |
|
20 |
0/-0.20 |
3 |
0/-0.05 |
8.7 |
FAQ:
Q: How many workers in your factory?
Q: Can you customize for clients?
Q: May I know which payment will be accepted by your company?
Q: How can I trust your company?
Q: What kinds of material you can produce?
Polyester resin composites
Epoxy resin composite
Polyurethane seals
Q: Have your products been exported?
